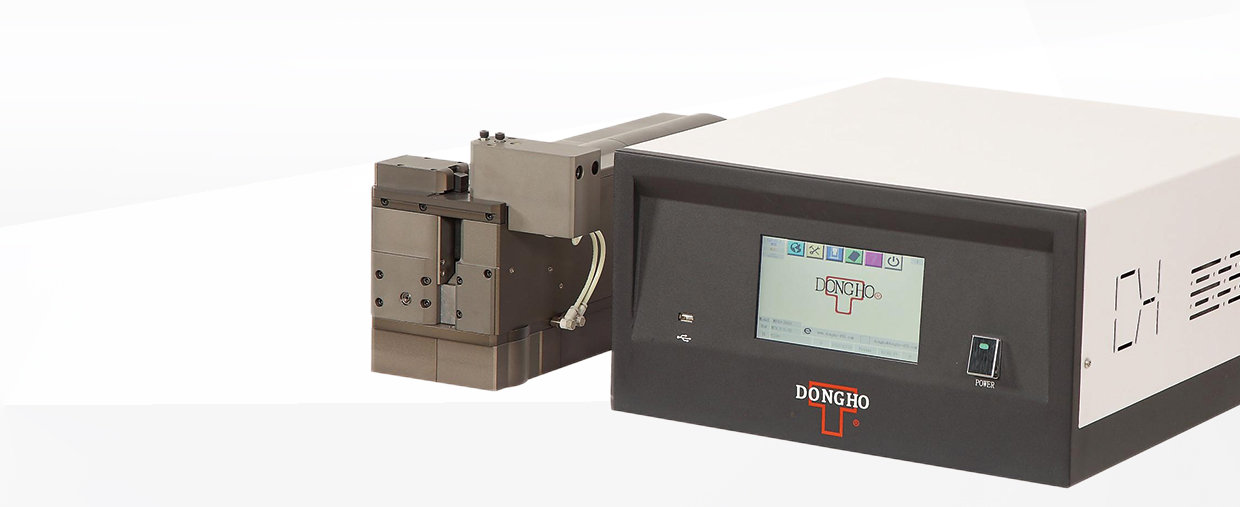

iBW20 series

Ultrasonic Metal Wire Welder

Main feature

The sixth generation iQS operating system, multi-level password protection and hierarchical authorization
UTC embedded stacked series of high-end processors to achieve high-speed and extreme control
Quality monitoring using graphic analysis.
Support four brands of scanners.
Support four brands of scanners.

Learn more

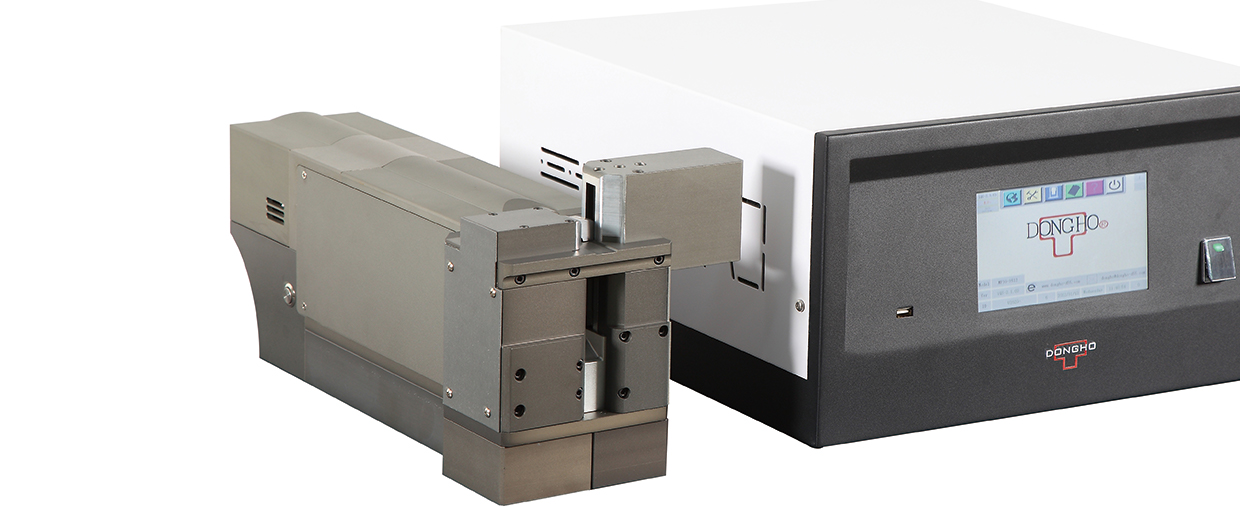

Ultrasonic Metal Wire Welder

The iBW20 series ultrasonic metal welder is designed for welding medium cross-sectional area wire harnesses in the range of 0.5 to 40 mm² , with a lightweight and precise design, ideal for non-fixed environments.

Specifications

Model:iBW20	Frequency:20KHz	Power:3000W-4000W
Voltage:AC220V-380V	Motion System:Pneumatic	Operating Device:7" color touch screen

Application

iBW metal wire harness welding machine, can be applied to cable laps, wire harnesses on assembly boards, cable compaction ends, copper/aluminum wire transfer welding, center wire laps, stranded data lines, high voltage multi-core cables, stranded braids Wire, mult-istrand wire splicing, twisted wire hybrid connection and other complex combined connections.

Typical application

Copper strand terminal node
Copper and Aluminum Stranded Wire - Access Node
Stranded hybrid connection
Stranded braided wire
Multi-strand wire splicing
Final compression of the paint line
Aluminum stranded wire
Cable connections for high current applications
Ultimate Compression High Flex Cable
Compressed Copper Braid
